High Density I/O Card: 6 digital inputs outputs

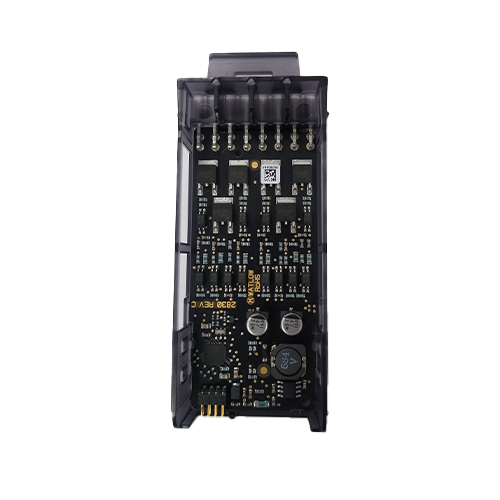

Watlow F4T High Density I/O Flex Module - 6 digital inputs outputs
Part Number: FMHA-CAAA-AAAA
Watlow’s F4T high-density flex module features six digital l/Os, each independently configurable as input or output.
Specifications:
Six digital I/Os each is independently configurable as input or output
Inputs:
Dry contact input: update rate 10 Hz, minimum open resistance 10 kΩ, maximum closed resistance 50 Ω, maximum short circuit 13 mA
- or -
DC voltage input: update rate 10 Hz, maximum input 36 V at 3 mA, minimum high state 3 V at 0.25 mA, maximum low state 2 V
Outputs:
Switched DC output: maximum 5 V DC at 130 mA
- or -
Open collector output: 32 V DC at 1.5 A maximum, 8 A maximum per 6 outputs combined
Connector Type: Right angle screw connector (standard).
Standard with quick start guide.
Watlow F4T High Density I/O Flex Module - 6 digital inputs outputs
Part Number: FMHA-CAAA-AAAA
Watlow’s F4T high-density flex module features six digital l/Os, each independently configurable as input or output.
Specifications:
Six digital I/Os each is independently configurable as input or output
Inputs:
Dry contact input: update rate 10 Hz, minimum open resistance 10 kΩ, maximum closed resistance 50 Ω, maximum short circuit 13 mA
- or -
DC voltage input: update rate 10 Hz, maximum input 36 V at 3 mA, minimum high state 3 V at 0.25 mA, maximum low state 2 V
Outputs:
Switched DC output: maximum 5 V DC at 130 mA
- or -
Open collector output: 32 V DC at 1.5 A maximum, 8 A maximum per 6 outputs combined
Connector Type: Right angle screw connector (standard).
Standard with quick start guide.
Watlow F4T High Density I/O Flex Module - 6 digital inputs outputs
Part Number: FMHA-CAAA-AAAA
Watlow’s F4T high-density flex module features six digital l/Os, each independently configurable as input or output.
Specifications:
Six digital I/Os each is independently configurable as input or output
Inputs:
Dry contact input: update rate 10 Hz, minimum open resistance 10 kΩ, maximum closed resistance 50 Ω, maximum short circuit 13 mA
- or -
DC voltage input: update rate 10 Hz, maximum input 36 V at 3 mA, minimum high state 3 V at 0.25 mA, maximum low state 2 V
Outputs:
Switched DC output: maximum 5 V DC at 130 mA
- or -
Open collector output: 32 V DC at 1.5 A maximum, 8 A maximum per 6 outputs combined
Connector Type: Right angle screw connector (standard).
Standard with quick start guide.
