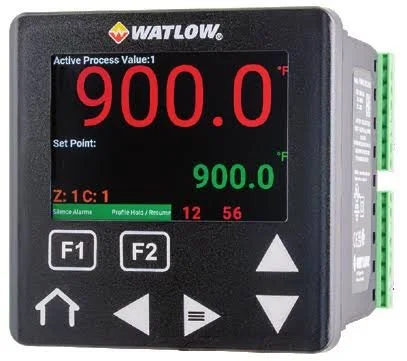

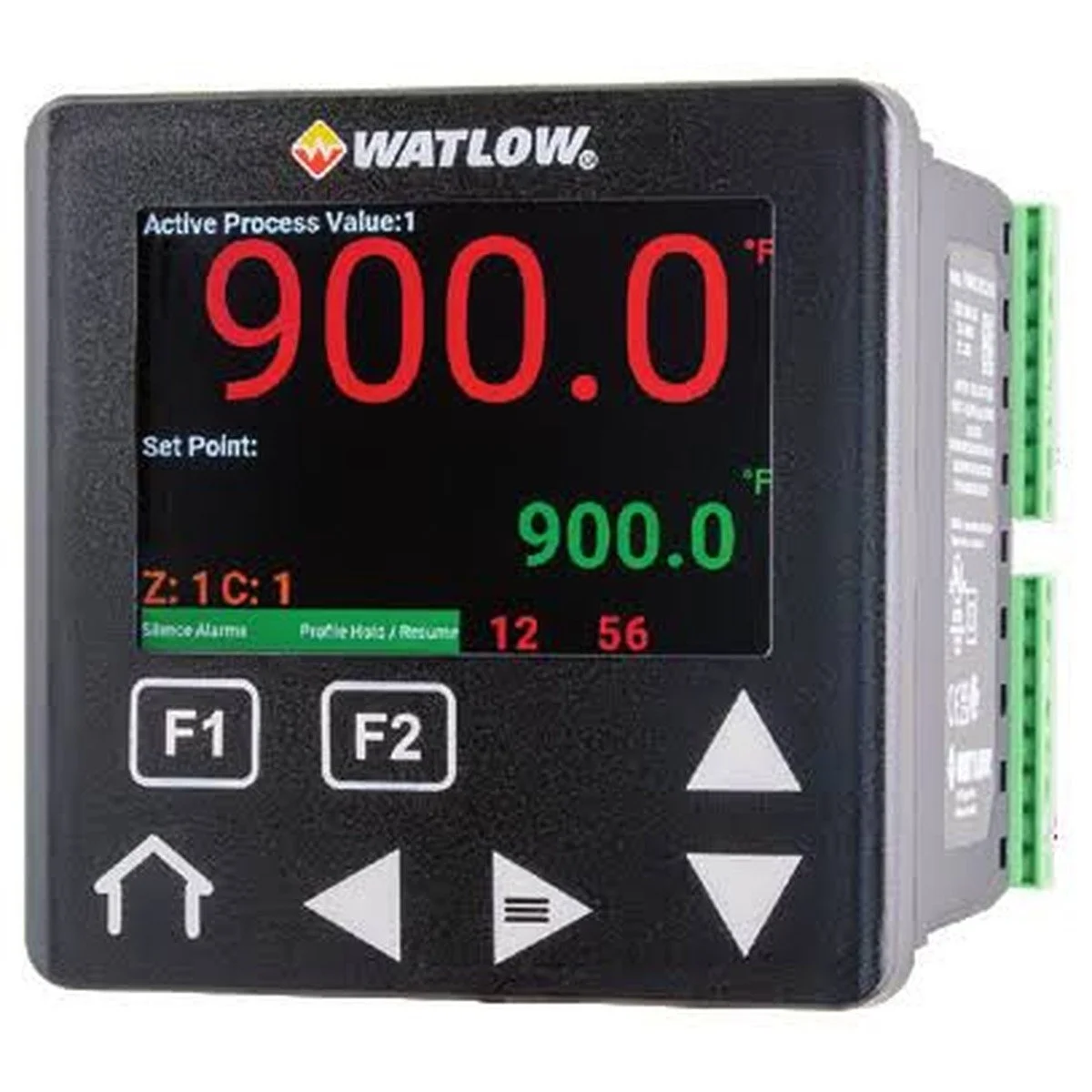

PM PLUS: 1/4 DIN PID + Limit, CJ, Bluetooth WS (Watlow)

Manufacturer: Watlow. Part number: PM4C1CJ-BLAJPWS. Watlow catalog number: 4093-2662.

Watlow PM PLUS™ 1/4 DIN Integrated PID and Limit Controller with Bluetooth® via the EZ-LINK™ mobile app.

This stocked configuration:

• Package: 1/4 DIN

• Function: PID controller with universal input

• Power: 100 to 240VAC

• Output 1: Switched DC / open collector

• Output 2: Mechanical relay 5A, Form A

• Communications: Bluetooth

• Auxiliary: Integrated limit controller with universal input

• Output 3: None

• Output 4: Mechanical relay 5A, Form A

• Face plate: Watlow PM PLUS (WS)

• Catalog number: 4093-2662

Shipping: 6 × 6 × 6 in / 1 lb.
