Watlow PM PLUS 9 with EtherCAT®

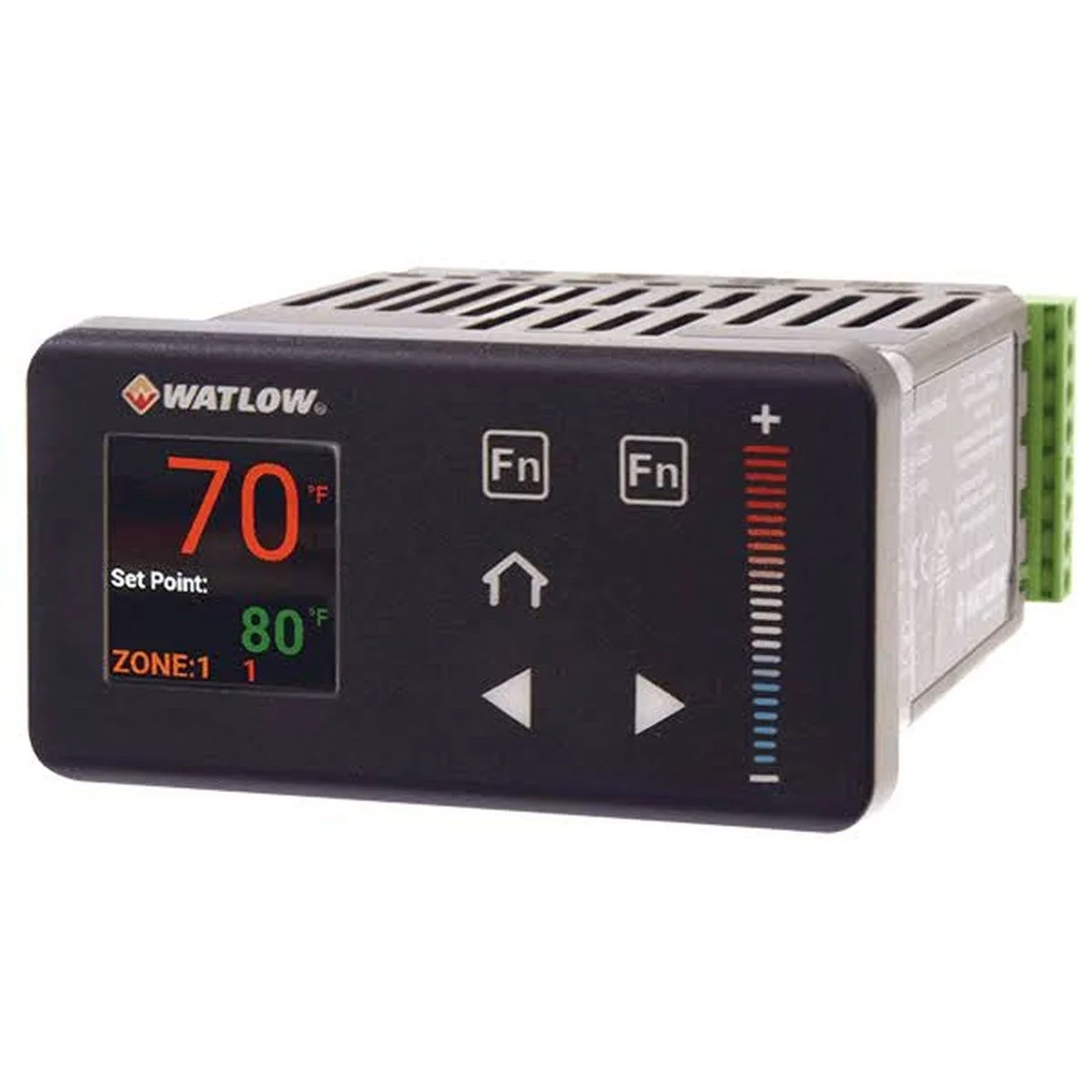

The 1/8 DIN horizontal PM PLUS controller can be ordered with EtherCAT communications. Entherm can help you spec it, configure it, and build it into your machine.
What's New
Watlow's PM PLUS™, the enhanced EZ-ZONE® PM, now lists EtherCAT® among its communication options. Per Watlow's PM PLUS specification sheet, EtherCAT is offered on the PM9 (1/8 DIN horizontal) package only, either on its own or combined with Bluetooth®, and is listed as EtherCAT ETG.5003.2060 conformance tested.
Who It's For
Machine builders and OEMs whose equipment runs on an EtherCAT network, including systems built around EtherCAT-capable PLCs and motion controllers from leading automation suppliers. If your control architecture is already EtherCAT, the PM9 lets your temperature loops join the same network.
Key Benefits
EtherCAT on a Familiar Controller
The same PM PLUS platform, with EtherCAT selected right in the part number (PM9 only).
Easy Setup
SMOOTH-TOUCH™ keypad, intuitive menu flow, and, if Bluetooth is ordered, the EZ-LINK™ mobile app for configuration and full parameter and error-code descriptions.
Integrated Functions
Order as a PID controller or an integrated controller: a 2nd PID loop, auxiliary input, current transformer input, or integrated limit, plus up to four outputs.
Backwards Compatible
Watlow notes the PM PLUS is backwards compatible with legacy EZ-ZONE PM controllers. Agency approvals per Watlow include UL® listed, CSA, CE, RoHS, and FM.
Part Number Guidance
In Watlow's PM PLUS configuration code, digit ③ (package size) must be 9 (1/8 DIN horizontal), and digit ⑧ (communication options) selects EtherCAT: 8 = EtherCAT or L = EtherCAT and Bluetooth. Here is a PM9 EtherCAT part we have quoted, decoded against Watlow's Integrated PID Controller configuration code:
PM9C3CJ-8RFJPWP
| Digit | Code | Meaning (per Watlow spec sheet) |
|---|---|---|
| ①② | PM | EZ-ZONE PM family |
| ③ Package size | 9 | 1/8 DIN (horizontal) |
| ④ Primary functions | C | PID controller with universal input |
| ⑤ Power supply, digital I/O | 3 | 20 to 28VAC or 12 to 40VDC |
| ⑥⑦ Outputs 1 and 2 | CJ | Output 1: switched dc/open collector; Output 2: mechanical relay 5A, Form A |
| ⑧ Communications | 8 | EtherCAT® (1/8 DIN horizontal, PM9 only) |
| ⑨ Auxiliary control functions | R | Auxiliary 2nd input (universal input) |
| ⑩⑪ Outputs 3 and 4 | FJ | Output 3: universal process; Output 4: mechanical relay 5A, Form A |
| ⑫ Model selection | P | PM PLUS PID version |
| ⑬⑭ Custom options | WP | Watlow logo face plate |
Every option combination should be confirmed against Watlow's current ordering information before ordering. Our team will check your configuration as part of every quote.
How Entherm Helps
Application Review
We'll review your inputs, outputs, and network needs and recommend a complete PM9 part number.
Configuration
Help with setup, tuning, and getting the controller ready for your machine.
Custom UL 508 Panels
UL 508 control panels built around Watlow controls to your spec.
One Point of Contact
A named Entherm contact who knows your machines and your parts list. See our OEM Support Program.
Call 1-877-368-4376.
Stocked PM9 controls: PM9 PID, FC, Bluetooth PM9 PID, EJ, Bluetooth PM9 PID, CJ, Bluetooth PM9 PID + Limit, CJ, Bluetooth
Listed shop items are Bluetooth versions; EtherCAT versions are quoted to order.
More: All Controls OEM Support Program
Sources: Watlow PM PLUS Specification Sheet (WIN-PMPLUS-0125) · Watlow PM PLUS product page. EtherCAT® is a registered trademark of Beckhoff Automation GmbH. Watlow®, EZ-ZONE® and PM PLUS™ are trademarks of Watlow Electric Manufacturing Company.
