Watlow Watbus System: PM PLUS, EZ-ZONE RM & ASPYRE AT
WHAT WATBUS IS
Watbus is Watlow’s proprietary RS-485 token-passing network used across the EZ-ZONE and related product families. High-speed inter-module bus connects modern EZ-ZONE RM modules and ASPYRE AT through CY, CX, and CZ terminals. Low-speed standard bus supports panel-mount PM / PM PLUS, RUI, and ST.
PM PLUS standard-bus terminals are CE, CD, and CF. They can link to ASPYRE AT when configured for Backplane Bus. Watbus is the Watlow ecosystem bus—not a plant fieldbus replacement. Plant Ethernet protocols typically enter through an RMA PLUS gateway.
SYSTEM BUILDING BLOCKS
PM PLUS runs the temperature loop and sends heat power demand. EZ-ZONE RM provides DIN-rail multi-loop control, limit, and modular I/O. RMA PLUS routes Watbus over Ethernet and USB, with Modbus TCP and optional EtherNet/IP and data logging. ASPYRE AT closes the loop on voltage, current, or power and returns heater diagnostics.
HOW THEY WORK TOGETHER

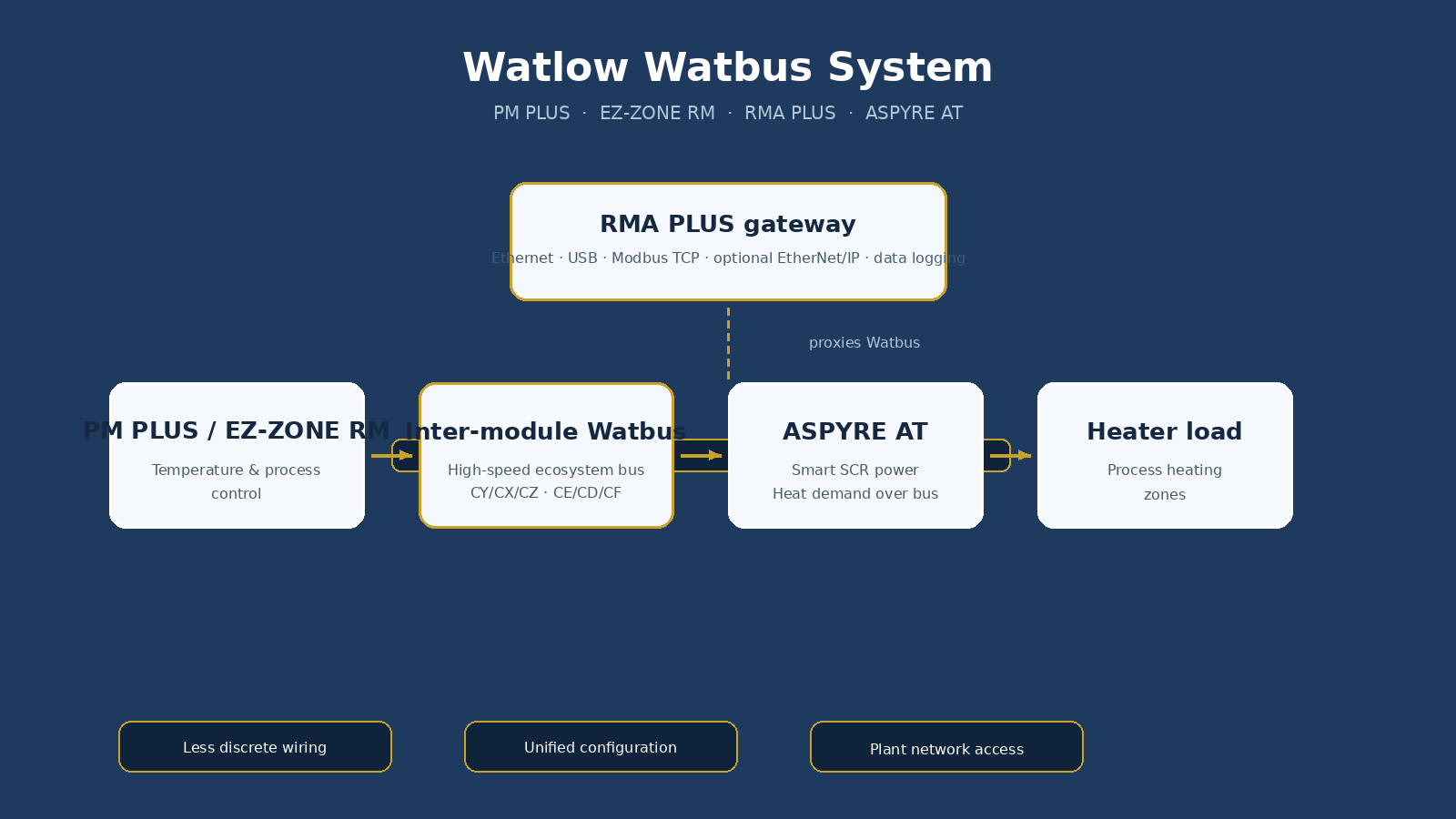

Sensor → PM PLUS or EZ-ZONE RM → inter-module bus → ASPYRE AT → heater. Add RMA PLUS for Ethernet/USB access and plant PLC or SCADA. Bus linking reduces discrete wiring and supports scalable multi-zone panels.
Typical architectures include compact panel PID plus SCR power, multi-zone DIN-rail control plus multiple ASPYRE AT units, and hybrid PM PLUS / RM systems. Entherm will review topology before you cut wire.
TYPICAL APPLICATIONS
• Multi-zone process heating panels: ovens, dryers, heated platens, and packaging seal bars.
• Systems where heater health and load diagnostics matter.
• Panels being converted from discrete SSR and analog demand wiring to a Watlow ecosystem bus.
• OEM machines needing a clean path from door-mounted PID to DIN-rail power.
• Facilities standardizing on Modbus TCP or EtherNet/IP at the PLC while keeping Watlow devices on Watbus inside the panel.
WHY ENTHERM
Entherm helps match PM PLUS versus RM density, RMA PLUS gateway options, and ASPYRE AT current ratings to your heaters and panel constraints. We offer local stock on many Watlow controllers, configurable RMA PLUS products, and engineering support for thermal loop design, panel layout, and commissioning in Burnsville, Minnesota.
