Multi-Zone Heater Control Panels
Watlow-controlled, system-tested panels for silicone rubber heaters and other multi-zone heating applications.
Request a Quote
Heat Forming Systems for Solid Surface Countertops
Matched control panel and silicone rubber heater mats, tested together before they ship.
- Even heat across the sheet from flexible silicone heater mats
- Independent zones, so each mat runs at its own setpoint
- Repeatable results with Watlow PID temperature control
- Plug-and-play setup, with mats that plug straight into labeled receptacles
- One source for both the panel and the heaters
What's included
- One Watlow EZ-ZONE PM temperature controller per zone, with a Control Power on/off switch for each zone on the door
- One solid-state relay and one DIN-rail circuit breaker per zone, with terminal blocks and wire duct
- Grey steel wall-mount enclosure with hinged door
- Heater twist-lock receptacles and thermocouple jacks on the bottom, labeled by zone

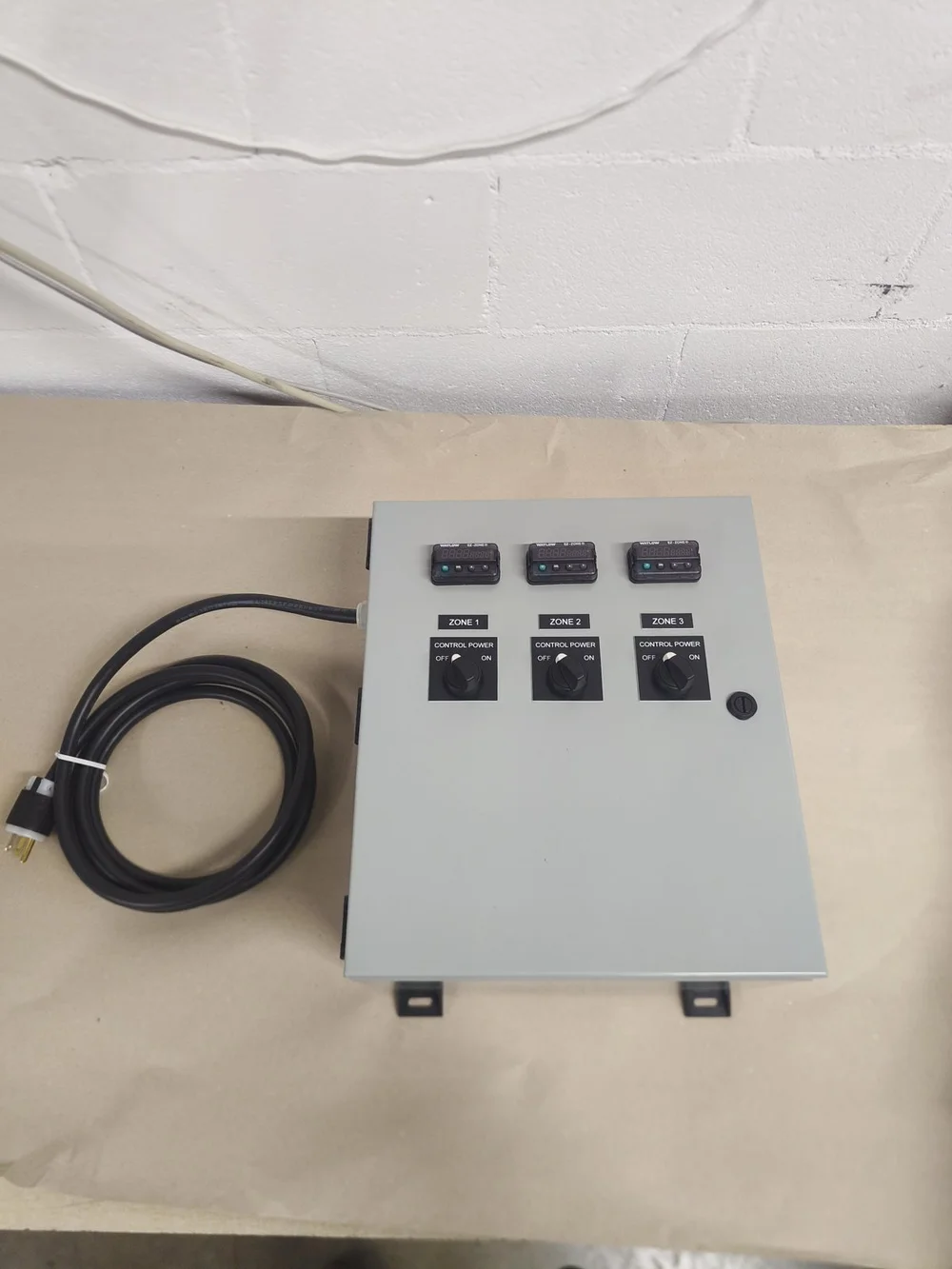

- Power cord and plug included
Standard configurations
- 3-zone, 120 V, 20 A main, up to about 750 W per zone
- 3-zone, 240 V
- Other zone counts and voltages available on request
Tested as a complete system
Entherm connects your heaters to the panel and tests the whole system before it ships, so it is ready to run when it arrives. Panels can be bundled with matched silicone rubber heaters with Type J thermocouples, and custom heater sizes are available.
Typical applications
Thermoforming with heated silicone mats for stone and quartz countertops, platen and mold heating, and general multi-zone heater control.

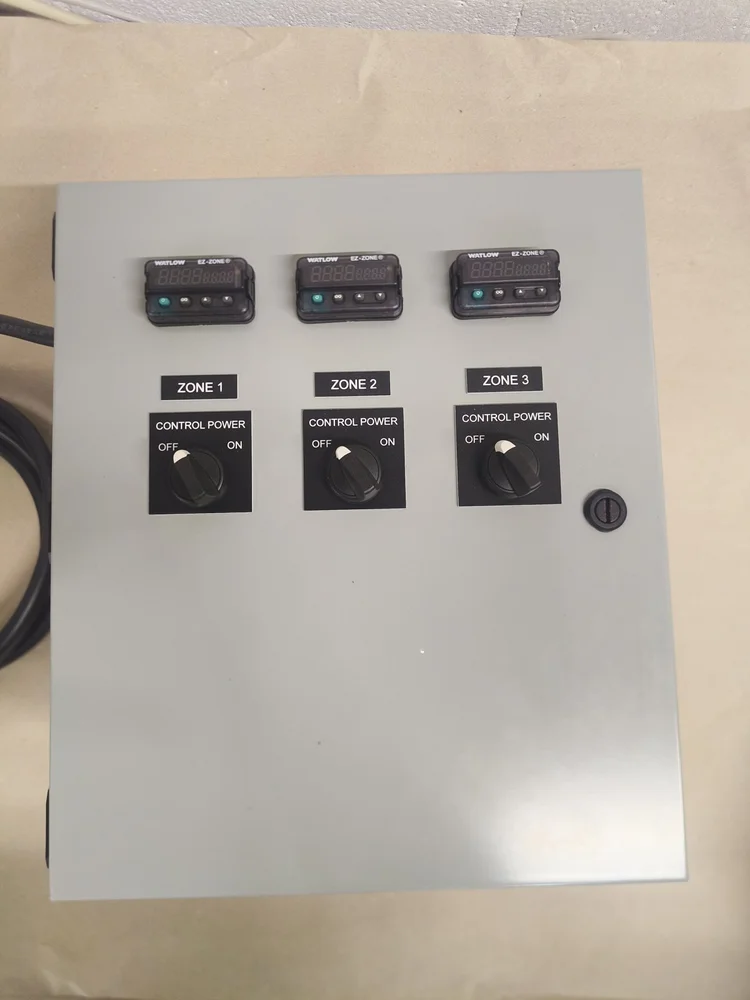

Watlow EZ-ZONE PM controller and power switch per zone

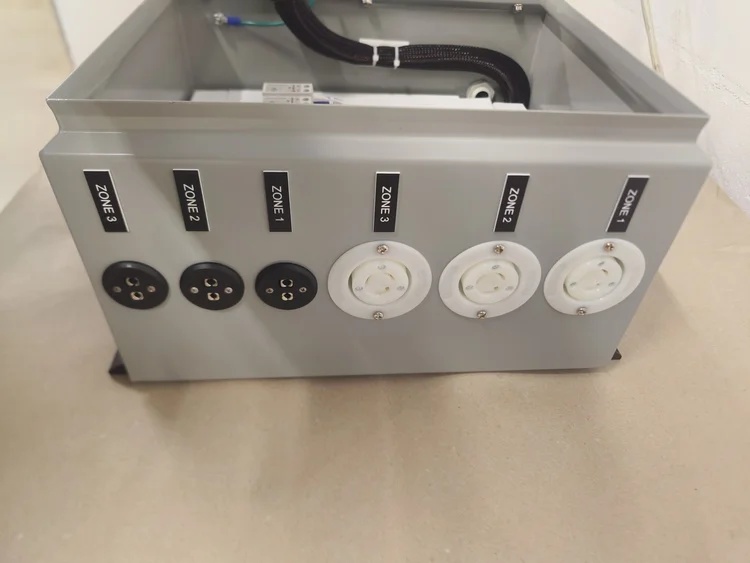

Twist-lock heater receptacles and thermocouple jacks

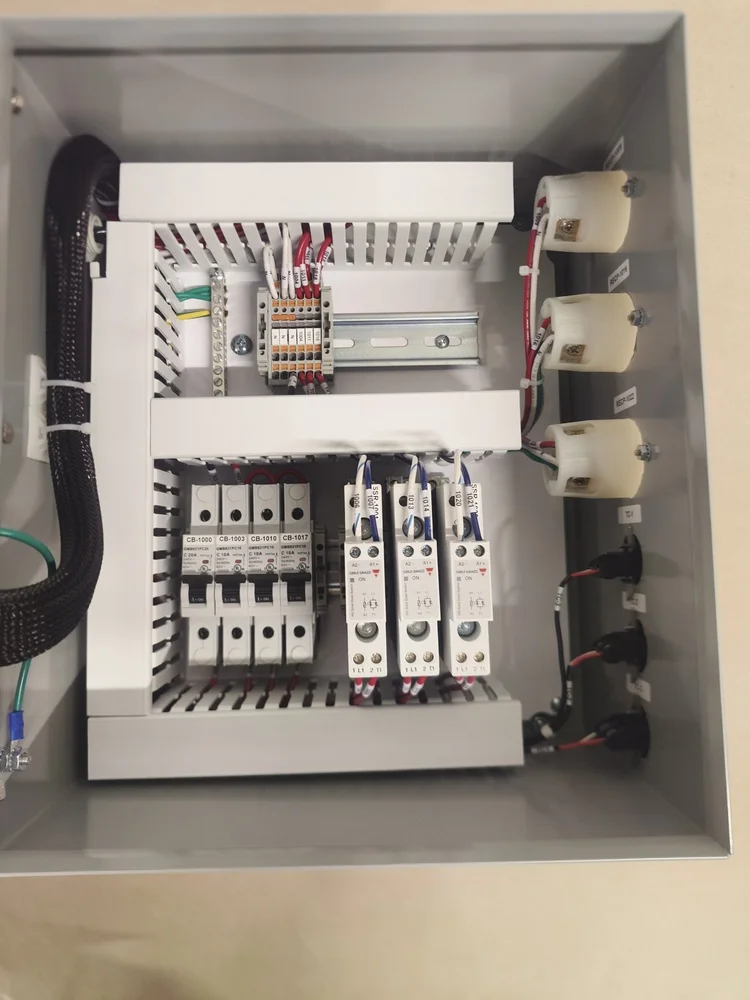

Breakers, solid-state relays and terminals inside
Pricing and lead time
Panels are quoted to your application. Typical lead time is 3 to 5 weeks. Call 1-877-368-4376 or email sales@entherm.com for a quote.
