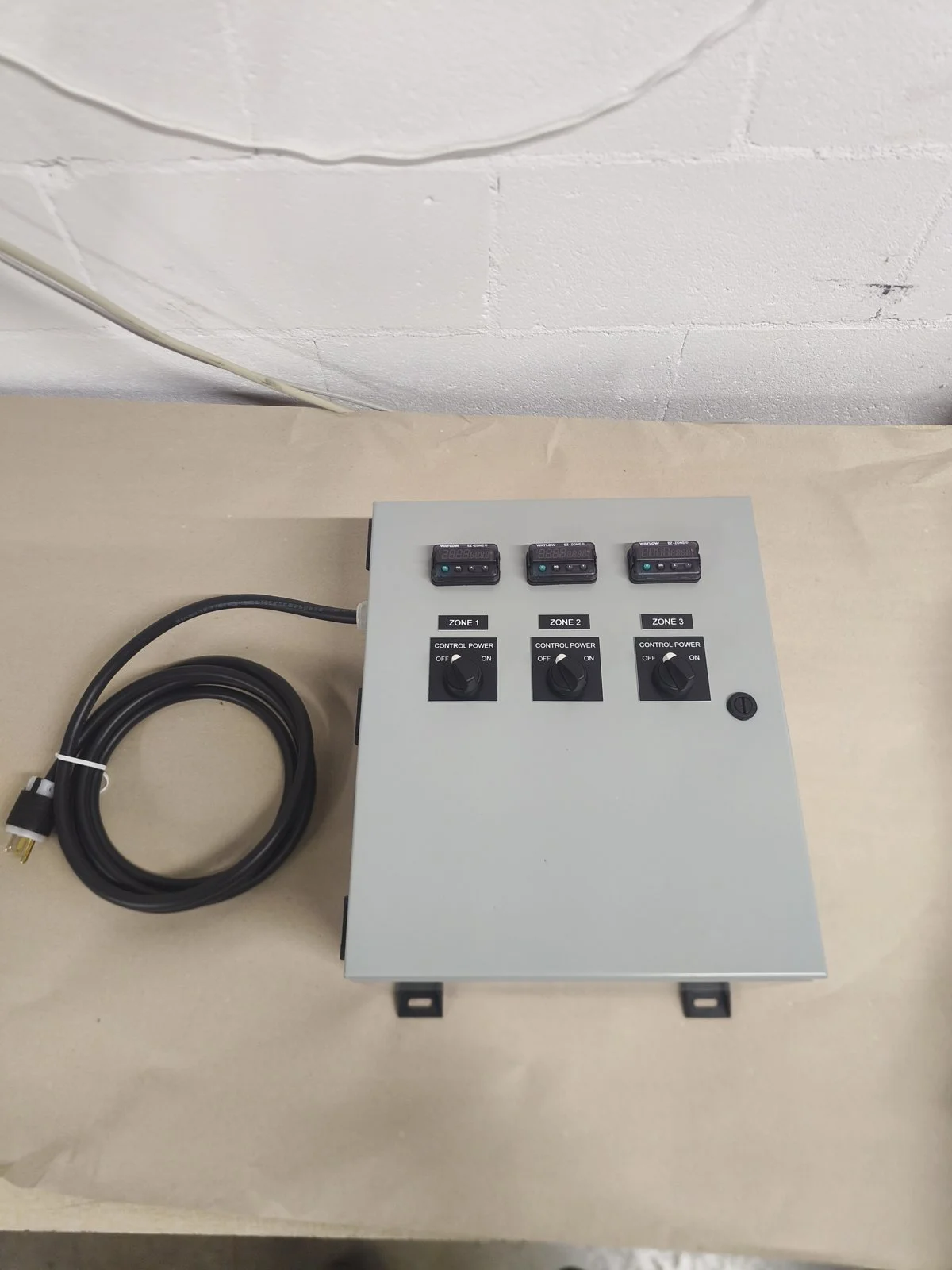

Watlow-controlled 3-zone heater control panel, built to order and system-tested before it ships. Ideal for silicone rubber heater mats used in thermoforming stone and quartz countertop material, platen and mold heating, and general multi-zone heat control.
• One Watlow EZ-ZONE PM temperature controller per zone, with a Control Power on/off switch for each zone on the door
• One solid-state relay and one DIN-rail circuit breaker per zone, with terminal blocks and wire duct
• Grey steel wall-mount enclosure with hinged door
• Heater twist-lock receptacles and Type J thermocouple jacks on the bottom, labeled by zone
• Power cord and plug included
120 V version: 20 A main, up to about 750 W per zone. 240 V version also available.
Built to order. Typical lead time is about 3 to 5 weeks, including system testing. Other zone counts and voltages are available by quote; call 1-877-368-4376 or email sales@entherm.com.
